$12,199.00

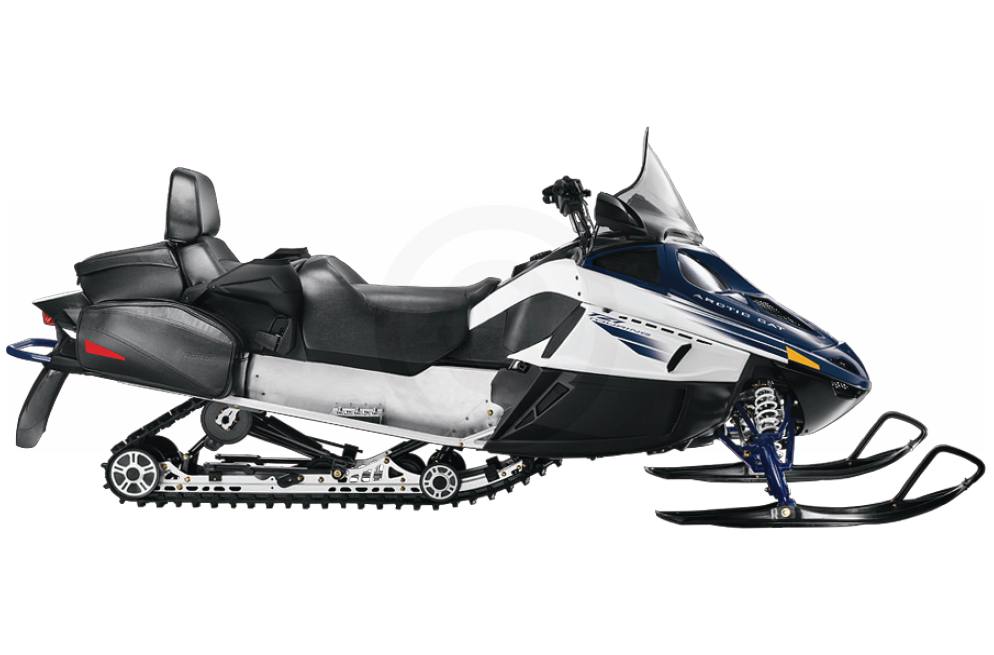

2010 Arctic Cat TZ1 LXR


Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.

Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

When it comes to the harsh elements, the TZ1 LXR offers key features to make your snowmobiling experience better, smoother and more luxurious. Give it up for IRP™: Infinite Rider Positoning™. Find your ideal riding position and adjust the seat, handlebars and footrests make this Cat™ yours and yours alone. But the comfort and convenience doesn't srop there. Its Body-Saving Ride Technology saves your body the aches and pains that you feel after the average snowmobile ride. Heated seats, a remote-control start and soft rear luggage compartements are the pefect addition to an already flawless touring sled. And the cherry on top? The benefit of an 1056cc Z1 4-stroke twin to provide the pwoer you need as the #1 Arctic Cat® enthusiast on your block.


4-Stroke Z1 Turbo Engine: The 4-stroke, 1056 twin with electronic fuel injection was already perfect, but we added an inter-cooled turbocharger. The net effect is nothing short of jaw-dropping. A reliable engine that won't lose power at high elevation. So if you want the highest horsepower in the industry, this is your engine.


2-Up Detachable Seat: The backrest and handholds are a passenger's best friend. For extended solo rides, remove the passenger seat and your'll find enough room to pack a week's worth of supplies.


Infinite Rider Positioning™: The adjustable handlebar lets you fine your ideal riding position. Pair IRP™ with the Twin Spart™ chassis and you can fine-tune the riding position to maximize comfort and control in all riding conditions.


Remote Electric Start: Warm up your sled without getting cold. Remote electric start is one of the many creature comforts found on this model.


Soft Rear Luggage: Three easy-to-remove compartments are perfect for keeping organized. Use one, two or all three at any time. What's more, the center bag is expandable. It actually doubles your storage capacity when riding solo.


Heated Seats: Heated driver and passenger seats come standard. Flip a switch, sit back and enjoy the ride in comfort.

    Engine
    • Type: 4-stroke
    • Displacement: 1056 cc
    • Cooling: Liquid
    • Cylinders: Twin
    • Bore x Stroke: 98 x 70 mm
    • Lubrication: Dry sump
    • Ignition: Full transistor/coil at plug
    • Carburetion: 48 mm dual throttle body EFI
    • Exhaust: Stainless steel muffler
    • Fuel Capacity: 10.8 gal.
    Power Train
    • Drive: Arctic (rpm sensing)
    • Driven clutch: Arctic (roller cam) ACT™ drive system
    • Brakes: Hydraulic disc
    Suspension
    • Front suspension: AWS™ VII double-wishbone A-arms with FOX® Zero Pro IFP shocks and sway bar
    • Front travel: 9.5 in.
    • Rear suspension: Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    • Rear travel: 13.3 in.
    Dimensions
    • Overall length: 128 in.
    • Overall width: 48 in.
    • Ski stance: 43 in.
    • Track width: 15 in.
    • Track length: 144 in.
    • Lug: 1.0 in.
    Color
    • Color: Navy Blue
    Standard Features
    • Dual halogen (4-bulb) headlight
    • UHMW plastic saddleless ski material
    • Digital/analog tachometer
    • Digital/analog speedometer
    • Dual stage trip odometer
    • Electric gas gauge
    • Low oil light
    • Coolant overheat light
    • Electric start
    • Remote electric start
    • Push-button reverse
    • Mirrors
    • High/low hand warmer
    • High/low thumb warmer
    • Heated driver and passenger seats
    • High windshield
    • Detachable passenger seat
    • Rack
    • 3 storage bags
    • Passenger hand warmers
    • Passenger wind deflectors
    • Adjustable backrest
    • Accessory outlet
    • Clock
    • Deluxe Gauge
    Optional Features
    • Cat Comm™
    • Engine heater
    • Tether switch
    • Hitch
    • Touring rack
    • Sport bumper
    • Touring bumper
    • Extra-high windshield

    Specifications

    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel muffler
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13.3 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 43 in.
    Track Dimensions Width: 15 in.; Length: 144 in.
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 10.8 gal.
    Color Navy Blue
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard

    Compare Models

    Print








    Year 2010
    Manufacturer Arctic Cat
    Model TZ1 LXR
    Style Touring
    MSRP* $12,199.00
    Drivetrain
    Brake Type Hydraulic disc
    Drive Clutch Arctic (rpm sensing)
    Driven Clutch Arctic (roller cam) ACT™ drive system
    Engine
    Engine Type 4-stroke
    Displacement 1056 cc
    Bore x Stroke 98 x 70 mm
    Cylinders Twin
    Engine Cooling Liquid
    Carburetion 48 mm dual throttle body EFI
    Ignition Full transistor/coil at plug
    Exhaust Stainless steel muffler
    Alternator
    General
    Speedometer Digital/analog
    Tachometer Digital/analog
    Odometer Dual stage trip
    Headlight Dual halogen (4-bulb) headlight
    Fuel Capacity 10.8 gal.
    Dry Weight
    Windshield
    Color Navy Blue
    Warranty
    Options
    Electric Start Standard
    Hand & Thumb Warmers High/low
    Reverse Standard
    Mirrors Standard
    Suspension
    Front Suspension AWS™ VII double-wishbone A-arms with FOX® Zero Pro IFP shocks and sway bar
    Front Travel 9.5 in.
    Rear Suspension Slide-action frame with coupling blocks, adjustable torsion springs and hydraulic twin tube front-arm shock, 2? dia. rear-arm shock, fiberglass overload springs, Torque Sensing Link™ rear arm
    Rear Travel 13.3 in.
    Ski Type UHMW plastic saddleless ski
    Ski Stance 43 in.
    Track Type
    Track Dimensions Width: 15 in.; Length: 144 in.
